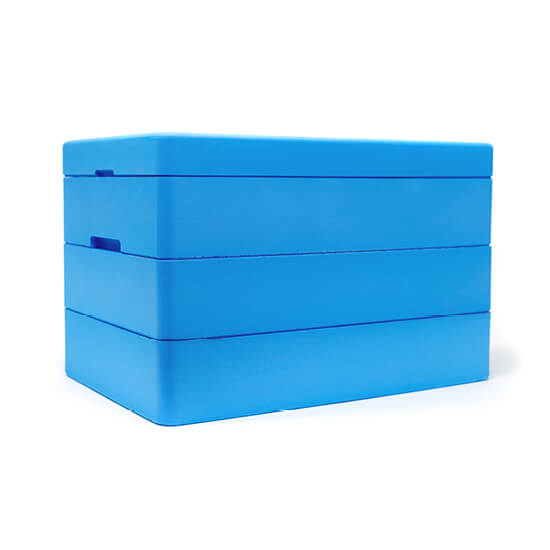

BioT™ ULT Transporter
< -70°C to -50°C dry ice based temperature stability system
The closed-cell, high-density polyethylene foam construction of the lid and base chamber is durable, non-absorbent, and remains comfortable to the touch even when loaded with dry ice and frozen materials. Magnetized lid ensures safe transport of contents. The dry ice retainer (DIR™) and thermoconductive shelf plate are constructed of aluminum alloy anodized for durability.
- Temperature range: < -70°C to -50°C
- Capacity: 8 standard 2-inch cryostorage boxes or 18 cassettes for 250 mL bags
- Internal working area: 29.0 x 16.2 x 20.3 cm (11.4 x 6.4 x 8.0 in)
- External dimensions: 50.8 x 33.8 x 33 cm (20.0 x 13.3 x 13 in)
- Dry ice required: Approximately 5.4 kg (12.8 lbs)
- Empty weight: 3.1 kg (6.8 lbs)
- Weight with dry ice: 9.0 kg (20.8 lb)
- Thermal performance: Over 8 hours with lid open and over 24 hours with lid closed
- Ready to use in approximately 10 minutes
- Lightweight, easy to carry
- Intuitive assembly, durable
- Easy to clean and store
Please download BioT resources here:

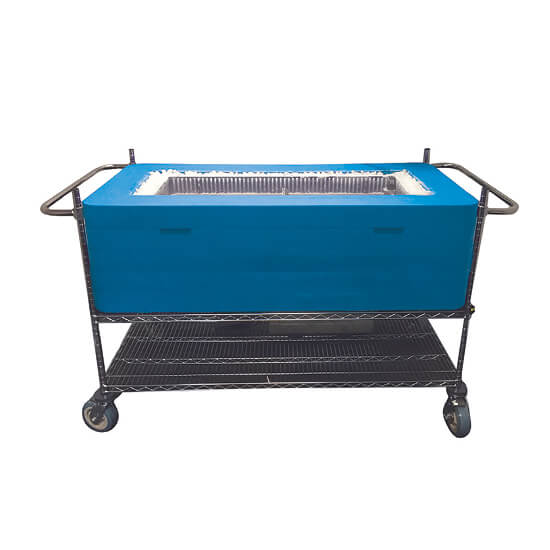

BioT™ ULT Mobile Workstation
< -75°C to -50°C dry ice-based mobile workstation
The dry ice-based BioT ULT Mobile Workstation provides a secure ultra-low temperature (ULT) -75° to -50°C work area for processing or transporting critical frozen samples. The patent-pending DIR™ cooling insert technology ensures that samples are completely immersed in temperatures below -50°C during the operating period. Requiring minimal dry ice, the chamber equilibrates to -50°C within 30 minutes and continues to cool for over 15 hours with the lid open and with a single charge of dry ice.
- Temperature Range: It maintains a temperature range of -75°C to -50°C using a dry–ice based cooling system
- Temperature Stability: It can reach below -50°C within 30 minutes and maintain stability for over 15 hours with the lid open using a single dry–ice charge
- Internal Working Dimensions: 105.4 x 33.0 x 35.5 cm (41.5 x 13.0 x 14.0 in)
- External Dimensions: 152.4 x 71.1 x 44.5 cm (60.0 x 28.0 x 17.5 in)
- Dry Ice Requirement: A full charge requires approximately 41 kg (90 lb) of dry ice
- Components: The workstation includes a container base, lid, and cart, with an optional temperature monitoring and alarm system available
Please download BioT resources here:

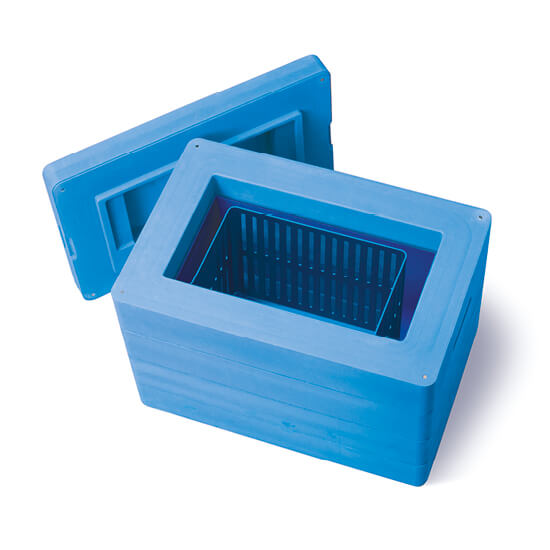

BioT™ LN2 Transporter
-150°C Liquid Nitrogen (LN2) transporter
The closed-cell, high-density polyethylene foam construction of the lid and base chamber is durable, non-absorbent, and remains comfortable to the touch even when loaded with dry ice and frozen materials. Magnetized lid ensures safe transport of contents. The dry ice retainer (DIR™) and thermoconductive shelf plate are constructed of aluminum alloy anodized for durability.
- Temperature Stability: Maintains temperatures below -150°C for 2-2.5 hours with the lid on
- Internal working dimensions: 36.5 x 20.3 x 20.3 cm (14.4 x 8.0 x 8.0 in)
- External dimensions: 50.8 x 33.8 x 33 cm (20.0 x 13.3 x 13 in)
- Capacity: Holds up to 6 standard 2-inch cryostorage boxes or 24 cassettes for 250 mL blood bags
- LN2 Required: Approximately 2.7 liters to charge the unit
- Weight Empty: 4.0 kg (8.8 lbs)
- Weight With LN2: 6.2 kg (13.6 lbs)
- Working Depth: < -150°C up to 15.2 cm (6 inches) from the floor plate
- Features: Thermoconductive basket, thermoconductive shelf plate, and absorbent/baffle pad
- Ready to use in approximately 10 minutes
- Lightweight, easy to carry
- Intuitive assembly, durable
- Easy to clean and store
Please download BioT resources here:
