The evo® DV10 utilizes liquid nitrogen absorbed into a proprietary porous membrane making it "dry" after charging which increases and maintains thermal efficiency.

It’s more than just a shipper. It’s connected and secure.

It’s more than just a shipper.
It’s connected and secure.

The evo® DV10 Smart Shipper represents the best-in-class performance for cell and gene therapy logistics management. Designed to handle high-value payloads for long-haul international or bulk shipments, or short-term storage, the performance is outstanding. With an internal temperature of ≤180˚C, DV10 Smart Shipper can be upright or on its side during transportation without failure. DV10 is also the fastest LN2 charging unit on the market.

The DV10 utilizes liquid nitrogen absorbed into a proprietary porous membrane making it “dry” after charging which increases and maintains thermal efficiency.

Need technical support
for your evo products?
We can help.
+

SmartCap

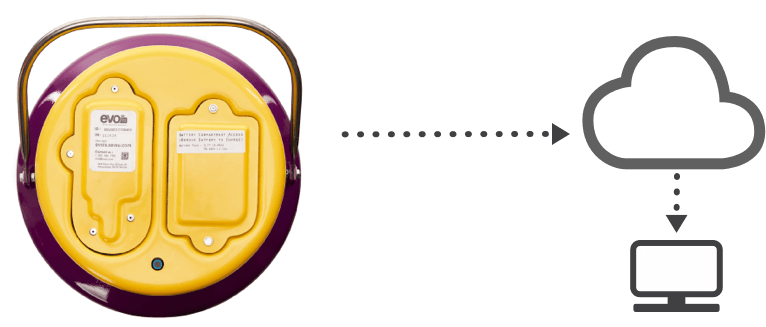

The SmartCap design dramatically reduces thermal leakage while also allowing real-time tracking of critical parameters of the shipment while in transit. The integrated sensors continually monitor the ambient and payload temperature, pressure, tilt and battery to keep you informed.

SmartCap

The SmartCap design dramatically reduces thermal leakage while also allowing real-time tracking of critical parameters of the shipment while in transit. The integrated sensors continually monitor the ambient and payload temperature, pressure, tilt and battery to keep you informed.

Need technical support
for your Evo products?
We can help.
+

ModPak Modular Cryogenic Packout Kit
Modular Protective Carrier
For Use with the DV10 Shipper

Configurable packaging for category B shipments when used with the evo DV10 system.

DV10 Specifications

Hold Time: Static: 15+ days, continuous 90° tilt: 2.5+ days
Hold Temperature: -196˚C
Temperature Management: Dry vapor liquid nitrogen
Payload Volume: 6.2 in x 3.9 in x 11.4 in, 5-9 250ml cassettes | 1-2 cryoboxes
Configurable: Yes
Shipper Size: 30.5 in x 15.5 in x 15.5 in
Packaging Dimensions: 36.6 in x 24.2 in x 22.7 in
Weight: Shipper only: 49.5 lbs. (22.4 kg) Ready to ship: 108.9 lbs. (49.4 kg)

Cloud-connected Compact Shippers
For Payloads at -60ºC

evo DI
Dry Ice Smart Shipper

The evo DI uses a patented thermal bridging system to minimize the amount of dry ice used, keeping the payload secure, and reducing temperature stratification as the dry ice sublimates.

evo DI
Dry Ice Smart Shipper

The evo DI uses a patented thermal bridging system to minimize the amount of dry ice used, keeping the payload secure, and reducing temperature stratification as the dry ice sublimates.
