Cooling transporters allow optimal handling and transporting of valuable temperature-sensitive biosamples.

BioT™ ULT Transporter

< -70°C to -50°C Dry-Ice Based Temperature Stability System


BioT™ ULT Mobile Workstation

< -70°C to -50°C dry ice-based mobile workstation


BioT™ LN2 Transporter

< -150°C Liquid Nitrogen Transporter


BioT™ ULT Transporter

< -70°C to -50°C Dry-Ice Based Temperature Stability System


BioT™ ULT Mobile Workstation

< -70°C to -50°C dry ice-based mobile workstation


BioT™ LN2 Transporter

< -150°C Liquid Nitrogen Transporter

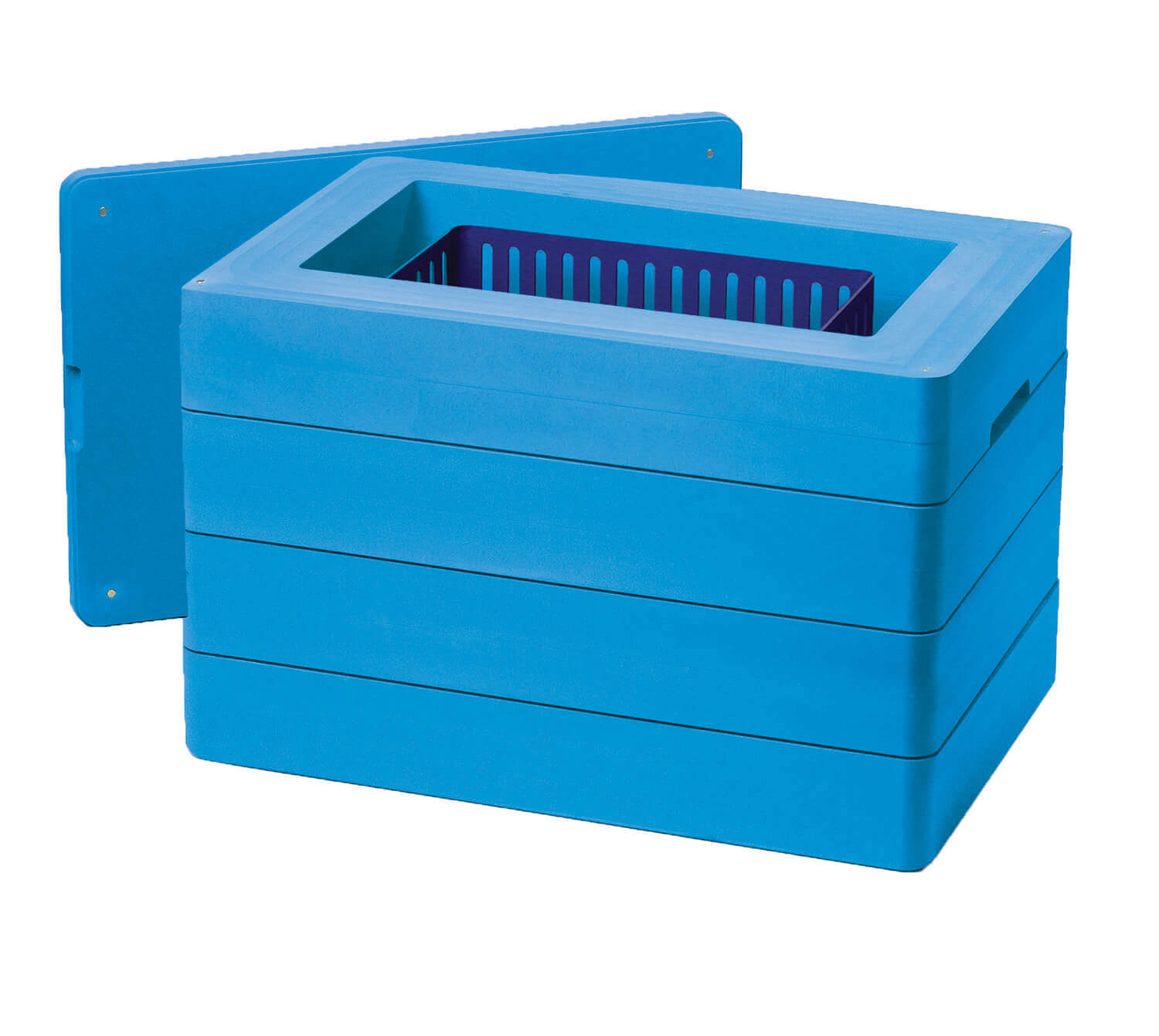

BioT™ ULT Transporter

-70°C to -50°C Dry Ice-Based Temperature Stability System

BioT ULT Transporter is a breakthrough portable solution for handling and transporting valuable temperature-sensitive frozen biosamples.



The BioT ULT Transporter uses dry ice-based temperature stability to keep samples frozen during short-term transport or processing.

  • Maintains < -70°C and -50°C for over 24 hours with minimal dry ice
  • Ideal for freezing samples at a collection site
  • Holds up to 8 standard 2-inch cryostorage boxes or 18, 250 mL cassettes
  • Lightweight, built-in finger grips for easy carrying
  • Intuitive assembly, highly durable materials

Comprised of three parts:

  1. Magnetized lid: ensures safe transport of the contents
  2. DIR™ dry ice retainer: constructed of a thermo-conductive aluminum alloy anodized for durability
  3. Base chamber

The closed-cell high-density polyethylene foam construction of the lid and base chamber is durable, non-absorbent and remains comfortable to the touch even when loaded with dry ice and frozen materials.



Portable and reusable

Dry ice to maintain < -70°C and -50°C for over 24 hours

Short-term transport

BioT™ ULT Transporter

Part Number: AST-500D
Dimensions: Internal working area: 29.0 x 16.2 x 20.3 cm (11.4 x 6.4 x 8.0 in) External: 50.8 x 33.8 x 33 cm (20.0 x 13.3 x 13 in)
Color: Blue
-70°C to -50°C: Lid off: over 8 hours / Lid on: over 24 hours
Amount of dry ice required: 5.4 kg (12.8 lb)
Weight empty: 3.6 kg (8.0 lb)
Weight with dry ice: 9.0 kg (20.8 lb)
Working depth < -50°C: up to 20 cm (8 in) from chamber floor
Capacity: 8 standard 2-inch cryostorage boxes or 18, 250 mL cassettes

BioT™ DIR™ Retainer

Part Number: AST-501D
Dimensions: 36.5 x 20.3 x 23.5 cm (14.4 x 8.0 x 9.25 in)
Color: Blue

ThawSTAR BioT ULT Mobile Workstation

Part Number: AST-508
Dimensions: Internal: 105.4 x 33.0 x 35.5 cm / 41.5 x 13.0 x 14.0 in External: 152.4 x 71.1 x 44.5 cm / 60.0 x 28.0 x 17.5 in
Color: Blue
Hours of <-50˚C cooling: Lid open: over 15 hours
Dry Ice: 41 kg (90 lb)
Working depth <-50˚C: up to 25.4 cm (10 in)

BioT™ ULT Transporter

Part Number: AST-500L
Dimensions: Internal working area: 36.5 x 20.3 x 20.3 cm (14.4 x 8.0 x 8.0 in) External: 50.8 x 33.8 x 33 cm (20.0 x 13.3 x 13 in)
Color: Blue
-180˚C to -150˚C at < 6’’: Lid off: 1 – 1.5 hours / Lid on: 2 – 2.5 hours
Amount of LN2 required: ~2.7 L to charge unit
Weight empty: 4.0 kg (8.8 lbs)
Weight with LN2: 6.2 kg (13.6 lbs)
Working depth < -150°C: up to 15.2 cm (6 inches) from floor plate
Capacity: > 6 standard 2-inch cryostorage boxes or 24, 250 mL cassettes

BioT™ LN2 Basket

Part Number: AST-501L
Dimensions: 36.5 x 20.3 x 20.3 cm (14.4 x 8.0 x 8.0 in)
Color: Blue
